Suntech STP160-180S-24/Ab-1 photovoltaic (PV) module delivers the most reliable solar power for on-grid and off-grid residential and commercial systems. This photovoltaic module is built with Suntech's highly regulated manufacturing standards and latest PV technology. Suntech's monocrystalline PV Module is designed to deliver the highest efficiency.low irradiance performance.
The STP160-180S-24/Ab-1 is a high efficiency monocrystalline module which is made from a monocrystalline silicon substrate from a single large crystal. Suntech's monocrystalline PV Module offers a superior conversion rate in capturing the energy from the sun and converting it into electricity that result into Suntech’s monocrystalline modules outstanding low light performance.
Features
- High conversion efficiency based on leading innovative photovoltaic technologies
- High power tolerance (±3%)
- Attractive appearance
- Withstands high wind-pressure and snow load, and extreme temperature variations
Excellent transferable warranty
- 5 years for materials and workmanship
- 12 years for 90% peak power outputs
- 25 years for 80% peak power outputs
Built for Long Service life
- Cells embedded in EVA (ethylene vinyl acetate)
- High transmission low-iron, tempered glass on the front
- Weather and waterproof film back
- High strength frame
Simple installation
- Polarized Multi-Contact DC-rated waterproof connectors
- Clear anodized aluminum frame with pre-drilled holes
Quality and Safety
- 25-year power output transferable warranty
- High quality standards with optical, mechanical and electrical component testing during and post-production
- ISO 9001:2000 (Quality Management System) and ISO 14001 (Environmental Management System) certified factories manufacturing world class products
- UL 1703, CEC, and cUL
Recommended Applications
- Residential roof top systems
- On-grid utility systems
- On-grid commercial systems
- Off-grid ground mounted systems
|

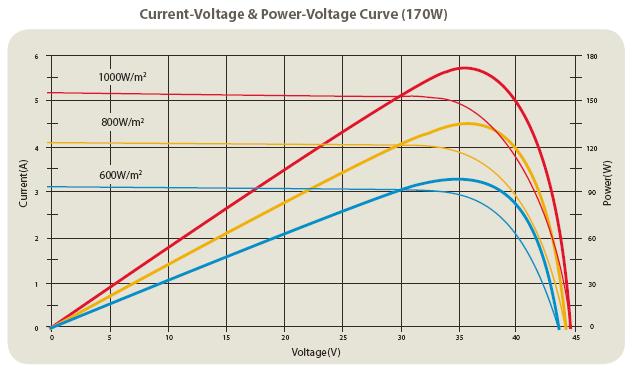

Electrical Characteristics
|
|
STC Power Rating Pmp (W)
|
175
|
|
PTC Power Rating Pmpp (W)
|
156.0
|
|
PTC/STC Power Ratio
|
89.1%
|
|
Open Circuit Voltage Voc (V)
|
44.2
|
|
Short Circuit Current Isc (A)
|
5.20
|
|
Voltage at Maximim Power Vmp (V)
|
35.2
|
|
Current at Maximim Power Imp (A)
|
4.95
|
|
Panel Efficiency
|
13.7%
|
|
Fill Factor
|
76.1%
|
|
Power Tolerance
|
-3.00% ~ 3.00%
|
|
Maximum System Voltage Vmax (V)
|
600
|
|
Maximum Series Fuse Rating (A)
|
15
|
|
Temperature Coefficients
|
|
Temperature Coefficiency of Isc
|
0.017 %/ºC
|
|
Temperature Coefficiency of Voc
|
-0.34 %/ºC
|
|
Temperature Coefficiency of Pmp
|
-0.48 %/ºC
|
|

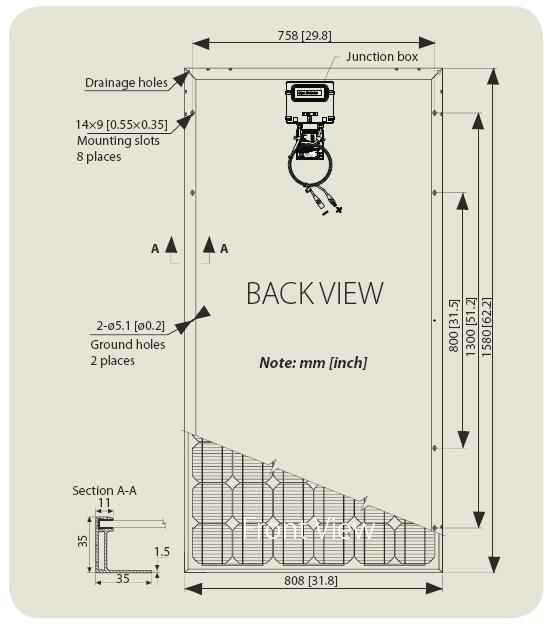

Mechanical Characteristics
|
|
Cell Type
|
Monocrystalline Cell
|
|
Cell Size(mm)
|
125 × 125
|
|
Cells
|
6 × 12
|
|
Dimensions
|
1580.0 × 808.0 × 35.0mm (31.8 × 62.2 × 1.4 inch)
|
|
Weight
|
15.5Kg (34.2 lbs)
|
|
Junction Box (Safety Rating, Bypass Diodes)
|
IP65, 3 Bypass Diodes
|
|
Positive Cable (Length, Cable Cross-Section)
|
800mm, 4mm
|
|
Negative Cable (Length, Cable Cross-Section)
|
1200mm, 4mm
|
|
Plug Connector (Type, Safety)
|
MC4
|
|
Front Cover (Thickness,Material)
|
3.2 mm (0.13inch) tempered glass
|
|
Backsheet Cover (Color, Thickness, Material)
|
|
|
Encapsulation Materials
|
|
|
Frame Material
|
Anodized aluminium alloy
|
|
Operation Conditions
|
|
Nominal Operating Cell Temperature (NOCT)
|
45.0ºC
|
|
Operating Temperature
|
-40.0ºC to 85.0ºC
|
|
Maximum Load
|
|
|
Hail Storm Rating
|
|
|
Fire Safety Rating
|
Class C
|
|
Warranty & Certification
|
|
Certificates
|
|
|
Defects & Workmanship Warranty Period
|
5.0 Years
|
|
90% Power Output Warranty Period
|
12.0 Years
|
|
80% Power Output Warranty Period
|
25.0 Years
|
|
Are Warranties Insured By Third Party
|
False
|
|
Packaging
|
|
Number of Panels per Box
|
26
|
|
Box Gross Size(mm)
|
1700 × 1120 × 1200
|
|
Box Gross Weight
|
480.0Kg (1058.2 lbs)
|
|
Boxes per Pallet
|
1
|
|
Pallet Gross Size(mm)
|
1700 × 1120 × 1200
|
|
Pallet Gross Weight
|
480.0Kg (1058.2 lbs)
|
|
Shipping Loading (20GP)
|
|
|
Shipping Loading (40GP)
|
28
|
|
Shipping Loading (40HQ)
|
|
|
|
